Selection of Material |

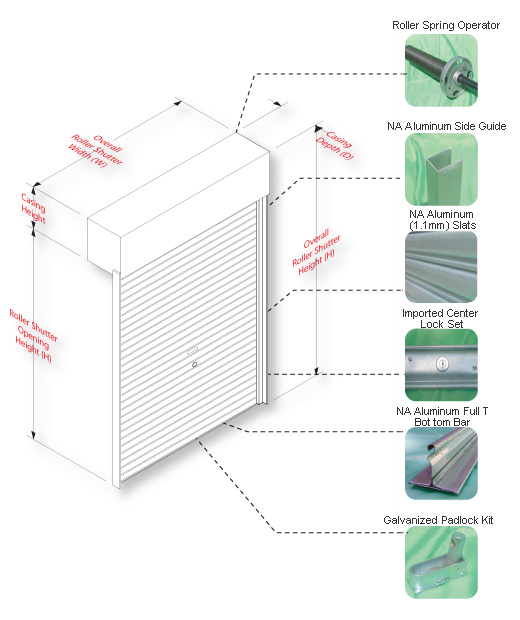

.: Shutter Slats (Curtain)
The roller shutter curtain slats is constructed
from dense Natural Anodized (NA) Aluminum
(thickness 1.0mm to 1.2mm) extrusion. The
materaial is light weight and rust-free in most
building environments.
.: Side Guide (Rail) & Mullion
Dense Natural Anodized (NA) Aluminum
(thickness 1.0mm to 1.2mm) extrusion side
guides are supplied. Removable mullion(s)
(available in galvanized steel and aluminum) is
also supplied when required.
.: Bottom Bar
The bottom bar fitted to the lowest certain slats
is constructed from continuously cold rolled
galvanized steel with the inverted “T” shape
giving stability and strength during operation.
.: Locking Device
The roller shutter comes with two standard locking devices. First, center lock secured by rivet and steel bar. Second, ground mounted galvanized padlock kit allows user to install their additional padlock.
.: Operator
The Spring Assisted Operator is constructed from high quality tension spring together with independent rollers to facilitate energy effective manual operation.
.: Optional
1. Upgrade to motor operator
2. Ventilation holes
|
|
| |
|
|
Opening Height |
Clearance for Standard 75mm Side Guide inclusive of steel hollow seal up (All Dimensions in mm) |
Clearance for Headroom (A) |
Clearance for Side Guide (B) |
Up to 3000 |
400 above |
150 above |
Up to 5000 |
450 above |
150 above |
|
| |
Side Guide Details
 |
|
