Selection of Material |

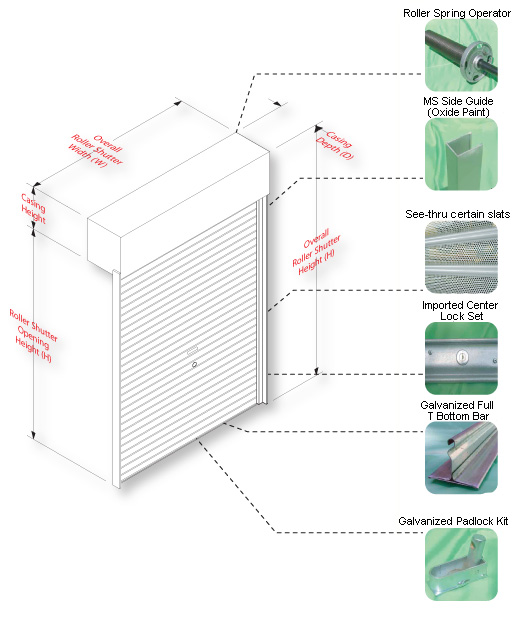

.: Shutter Slats (Curtain)
The roller shutter slats or curtain is constructed from continuously cold rolled with interlocking-technology using galvanized steel.
.: Side Guide (Rail) & Mullion
Galvanized continuously cold rolled steel channgels are supplied. Removable mullion(s) (available in galvanized steel and aluminum) is also supplied when required.
.: Bottom Bar
The bottom bar fitted to the lowest certain slats is constructed from continuously cold rolled galvanized steel with the inverted "T" shape giving stability and strength during operation.
.: Locking Device
The roller shutter comes with two standard locking devices. First, center lock secured by rivet and steel bar. Second, ground mounted galvanized padlock kit allows user to install their additional padlock.
.: Operator
The Spring Assisted Operator is constructed from high quality tension spring together with independent rollers to facilitate energy effective manual operation.
.: Optional
Upgrade to motor operator
|
|
| |
|
|
Opening Height |
Clearance for Standard 75mm Side Guide inclusive of steel hollow seal up (All Dimensions in mm) |
Clearance for Headroom (A) |
Clearance for Side Guide (B) |
Up to 3000 |
400 above |
150 above |
Up to 5000 |
450 above |
150 above |
|
| |
Side Guide Details
 |
|
