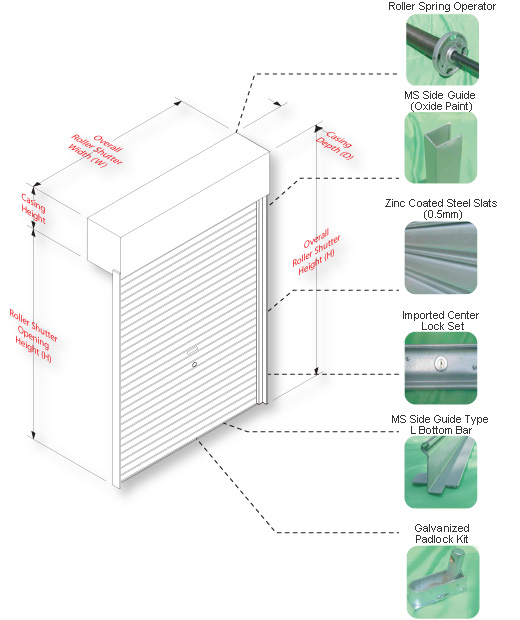

Selection of Material
.: Shutter Slats (Curtain)
The roller shutter slats or curtain is constructed from continuously cold rolled interlocking by using zinc coated based galvanized steel.

.: Side Guide (Rail) & Mullion
Galvanized continuously cold rolled steel channels are supplied. Removable mullion(s) (available in galvanized steel and aluminum) is also supplied when required.

.: Bottom Bar
The bottom bar fitted to the lowest certain slats is constructed from continuously cold rolled galvanized steel with the “L” shape.

.: Locking Device
The roller shutter comes with two standard locking devices. First, center lock secured by rivet and steel bar. Second, ground mounted galvanized padlock kit allows user to install their additional padlock.

.: Operator
The Spring Assisted Operator is constructed from high quality tension spring together with independent rollers to facilitate energy effective manual operation.

.: Optional
1. Upgrade to motor operator
2. Ventilation holes



Opening Height
Clearance for Standard 75mm Side Guide inclusive of steel hollow seal up (All Dimensions in mm)
Clearance for Headroom (A)
Clearance for Side Guide (B)
Up to 3000
400 above
150 above
Up to 5000
450 above
150 above

Side Guide Details
