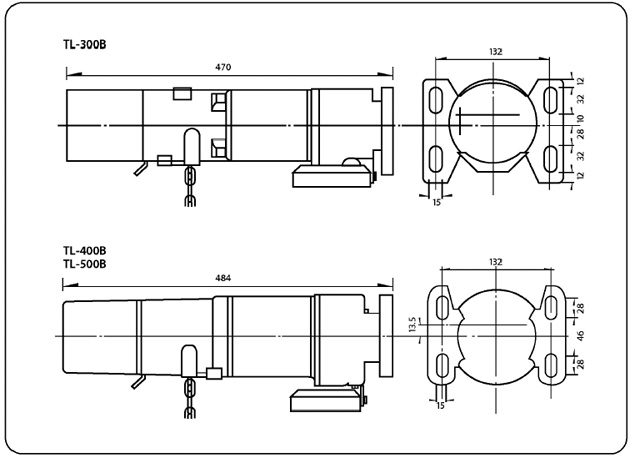

Outer Shape & Dimension

The outer shape and dimension of the motor operator is illustrative purposes only. Actual shape and dimension may differ. Please contact our Sales Department for more information.


Specifications - Torque Power
Model
Voltage & AMP (50Hz)
Weight
Motor
Body
Hang Weight
HP
RPM
Star 300 1
230v (1.6A)
10kg
300
1/4
32
Star 400 1
230V (Z5A)
12kg
400
1/3
32
Star 500 1
230V (2.5A)
12kg
500
1/2
29
The specification are approximation purposes only. Please contact our Sales Department for more information.
* Subject to change
